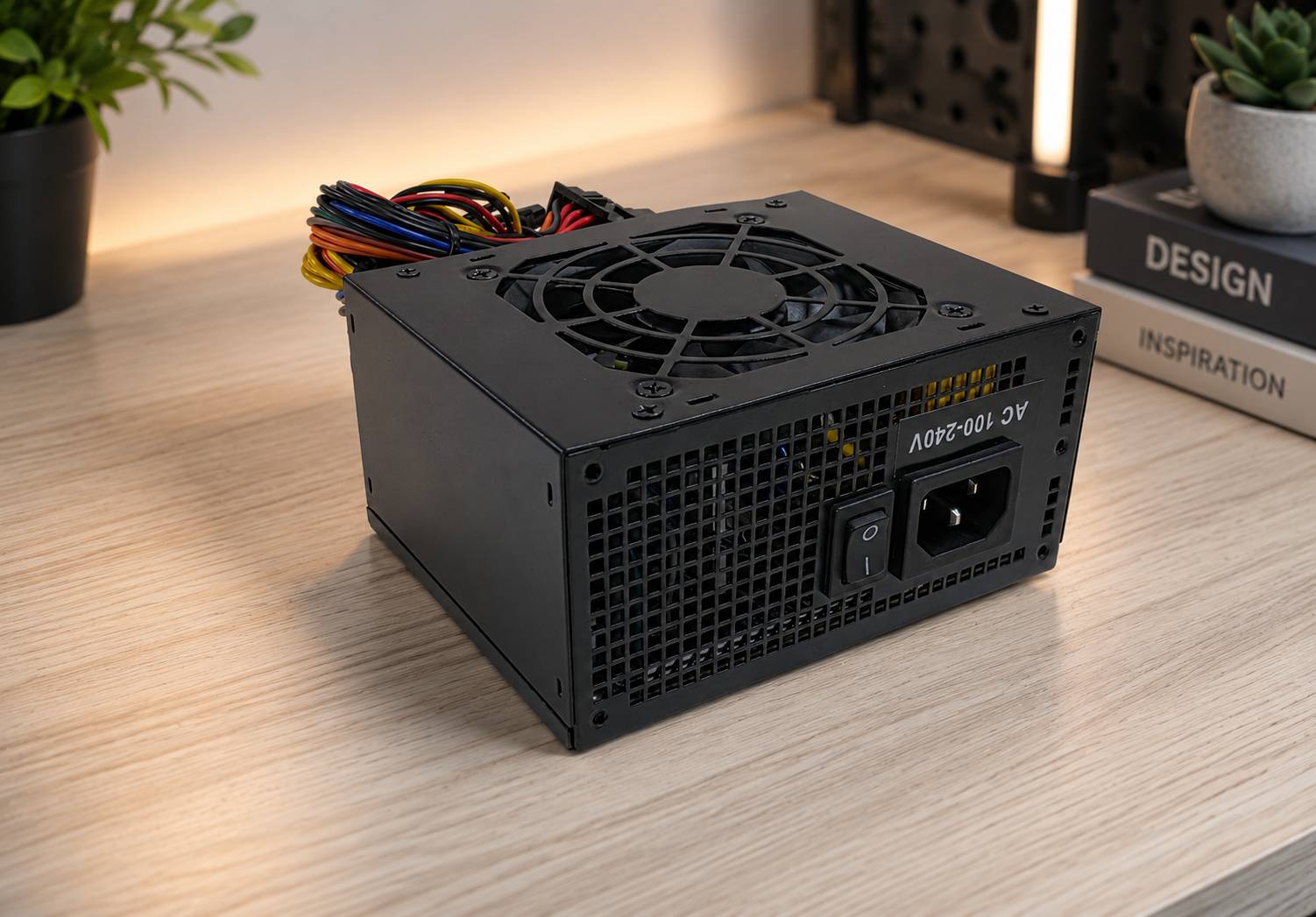

KT-S400FX 80PLUS series
  • 400Watt Continuous power output
  • Compliance with Intel SFX12V standard
  • TUV, UL, cUL, CB, CE, FCC Safety & EMI approved
  • Typical 99% power efficiency by active PFC design
  • DC to DC design
  • Support standard SFX , mini-ITX form factor
  • Support ATX and Micro-ATX via bracket (optional)
  • Full protection features of OVP, OCP, OPP
  • Dimension : 125 x 100 x 63.5mm
  • Efficiency : 80PLUS (KT-S400FX-Ayy)
                      80PLUS Bronze (KT-S400FX-ABR)
  • Cooling fan : Silent 80mm fan on top
  • Protection feature : OVP, OCP, OPP, Short Protection
  • Operating tmperature: 0-40 degree Celsius.
  • Stortage temperature : -20-85 degree Celsius

 Output cable :



  • 20/24PIN
  • 12VP4+P4
  • PCI-EXPRESS 6+2P
  • SATA
  • HDD 4P











More detailed information is available upon request

specification can be updated without notification
