ALL-In-One solution
| -Features |
| Fashion ID design |
| Professional & Reliable design |
| Easy assembly and upgrade by user |
| Designed for use at home and office |
|
|

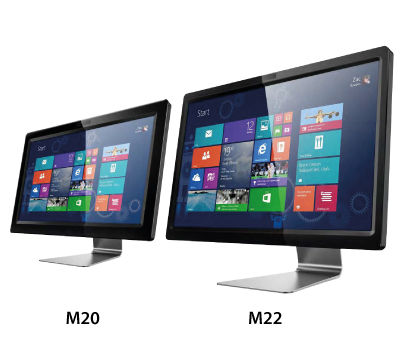

| Model name |
M20 |
M22 |
| LCD |
19.5" |
21.5" |
| Dimension |
510(L) x 391(H) x 75(D)mm |
510(L) x 391(H) x 75(D)mm |
| M/B configuration |
Standard MicroATX/Mini-ITX |
Standard MicroATX/Mini-ITX |
| Display |
| Screeen size |
19.5" |
21.5" |
| Display type |
LED-backlit |
LED-backlit |
| Resolution |
1600(H) x 900(V), Full HD |
1920(H) x 1080(V), Full HD |
| Brightnewss(Typ.) |
250nits |
250nits |
| Response time |
5ms (Typ., on/off) |
5ms (Typ., on/off) |
| Contrast ratio |
1000:1 |
1000:1 |
| Hard drive support |
1 x 2.5" HDD
1 x 12.7mm ODD |
1 x 2.5" HDD
1 x 12.7mm ODD |
| 2 x 2.5" HDD |
2 x 2.5" HDD |
| Ports and connectors |
| Built in on side |
USB2.0
4in1 card reader |
USB2.0
4in1 card reader |
| Ports on bottom |
Base on M/B's specification |
Base on M/B's specification |

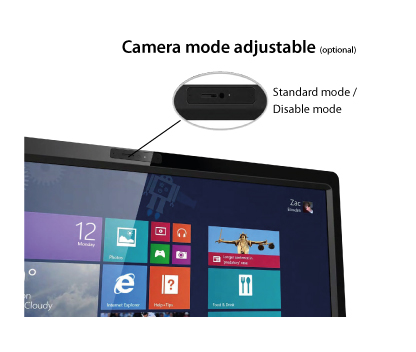

| Webcam |
1M Camera (optional) |
1M Camera (optional) |
| Microphone |
optional |
optional |
| WLAN |
Wireless LAN802.11a/b/g/n card (optional) |
Wireless LAN802.11a/b/g/n card (optional) |
| Speaker |
2 x 3W |
2 x 3W |
| Power supply |
Flex-ATX 1U
200Watt. |
Flex-ATX 1U
200Watt. |
| Accessory |
Power cord, user manual |
Power cord, user manual |
| * Design, features and specifications subject to change without notice. |
|
|
